Full HVAC Installation & 2-Ton Variable Heat Pump in Orange, CA | New Ductwork, Electrical & Attic Air Handler

Today we’re in Orange, California, completing a full HVAC installation featuring 2 ton variable speed HEAT PUMP system.

We installed a new heat pump system with a brand-new refrigerant line set and dedicated electrical line, setting the outdoor unit on elevated pads for stability and protection. Inside, a new attic air handler was installed with carefully routed ductwork to preserve storage space.

The system includes a 5-inch high-efficiency filter, a secondary drain pan with safety drain protection, and operates at an ultra-quiet 60 decibels. We also removed the old gas floor furnace, added new supply vents in every room, and installed a new return air opening for balanced airflow throughout the home.

🔧 Project Highlights:
* Removed existing gas floor furnace
* Installed new 2-ton variable-speed inverter heat pump
* New refrigerant line set installed
* New dedicated electrical line run for the system

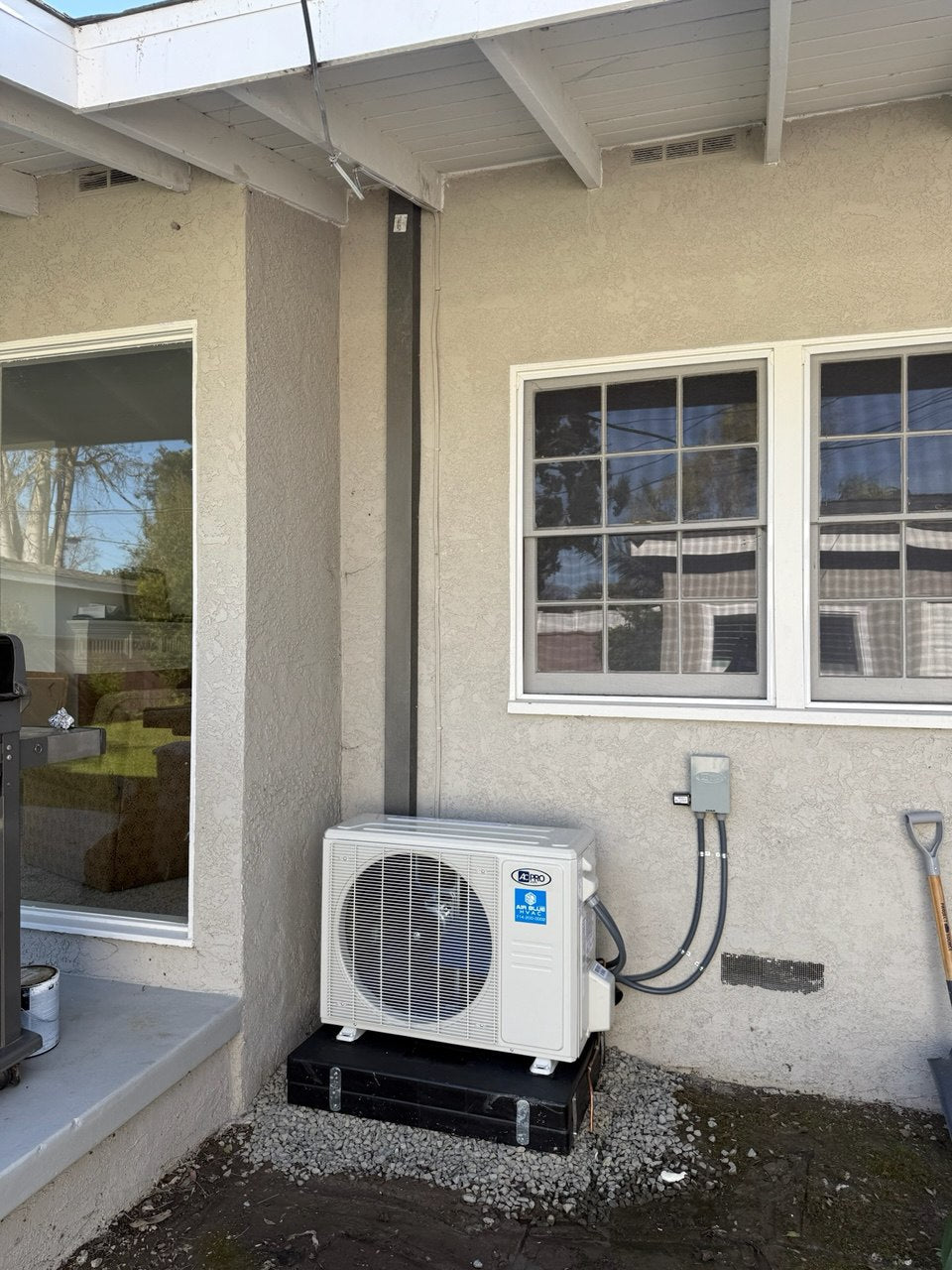

* Outdoor unit mounted on dual plastic pads for durability
* New attic air handler installation
* Full attic duct system with organized layout
* New supply vents in every room
* New return air opening cut and properly sized
* 5-inch high-efficiency air filtration
* Secondary condensate drain protection

🛠 Equipment Installed:
* Brand: AC Pro
* Type: Z-Series Variable-Speed Heat Pump
* Capacity: 2 Ton
* Outdoor Model: SPHP-Z-V024BB
* Indoor Model: AIRH-Z-V024V08C
