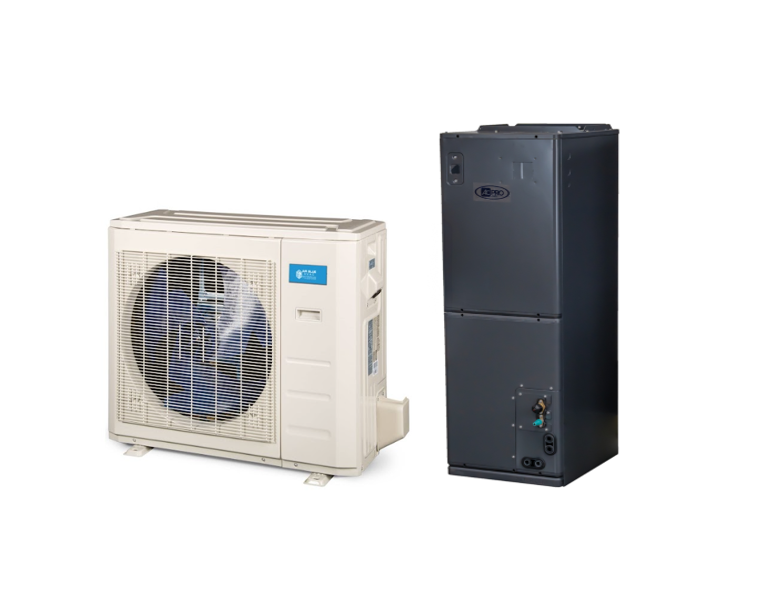

Z-Series Heat Pump System 2 Ton 18.6 SEER2 12 EER2 10 HSPF2 R454B

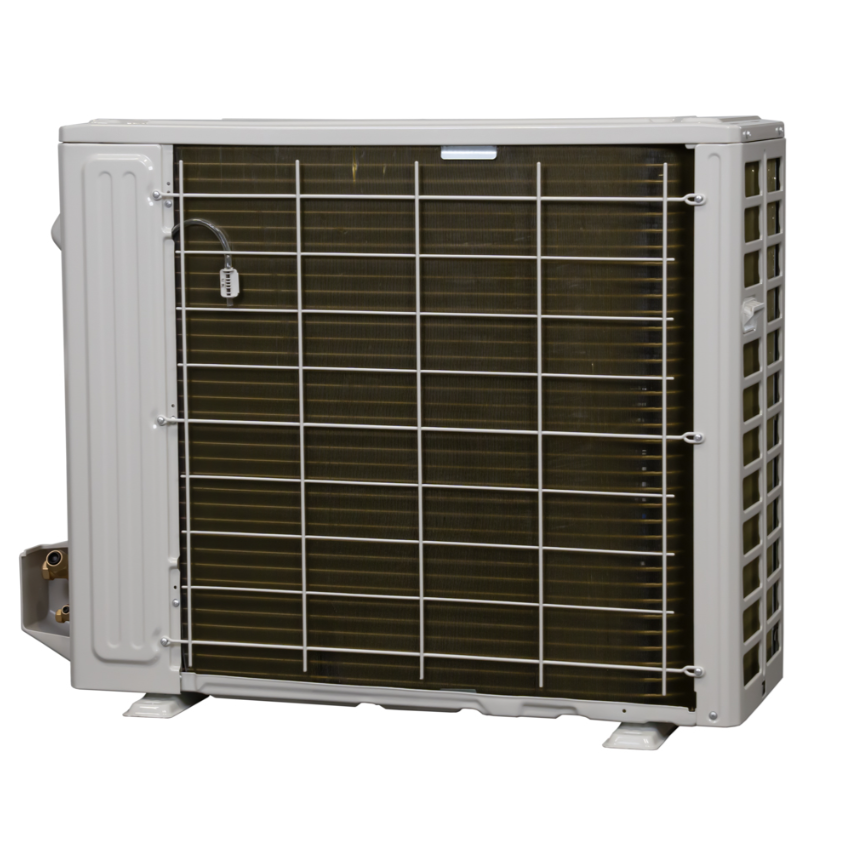

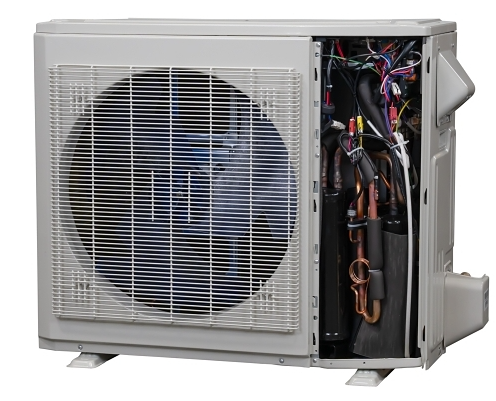

Z-Series Condenser Heat Pump 2 Ton 18.6 SEER2 12 EER2 10 HSPF2 R454B

• High-Efficiency Performance – Achieves 17.5–19 SEER2, meeting ENERGY STAR® certification and qualifying for tax credits and rebates.
• Match with the Z-Series self-Identifying 115/230V Air Handler – Indoor unit automatically detects voltage and operates on either 115V or 230V upon installation.
• 10 Year Parts & Compressor Warranty, no registration required.
• Optional Communicating Touchscreen Thermostat (sold separately)– Z-Series communicating thermostat features a sleek, modern design and maintains variable speed and peak efficiency for optimal comfort and energy savings.
• Simplified Retrofit Installation – A2L sensor control requires only two wires for indoor-to-outdoor connectivity, making installation easier for contractors. Also, the indoor unit measures as a standard 14.5, 17.5, 21.5 cabinet width.



  Brand Name	AC Pro
  MFG Name	AC Pro
  MFG Model ID	SPHP-Z-V024BB
  MFG Product ID	SPHP-Z-V024BB
  AC Pro Item ID	84232
  Width	35.04 Inches
  Depth	13.46 Inches
  Height	26.50 Inches
  Weight	102.29
  Warranty Details	10 Year Compressor~10 Year Parts
  dB Rating	59
  EER2	12.0
  HSPF2	10
  Liquid Line Size	3/8 Inches
  Manufacturer Group	Z-Series
  Max Amps	20
  Min Amps	19
  Phase	Single
  Refrigerant Type	R454B
  Region	California~Arizona~Nevada~Utah
  SEER2	18.6
  Stages	Variable
  Suction Line Size	3/4 Inches
  Tonnage	2
  Type	Heat Pump
  Voltage	230 AC
  Weight	102.29 Pounds

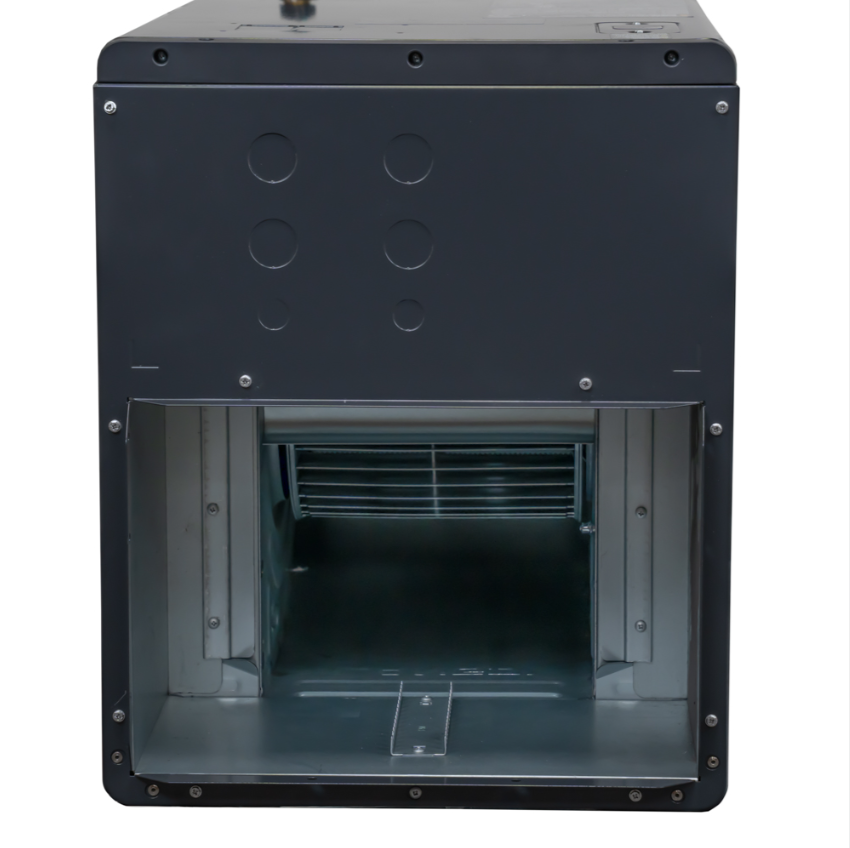

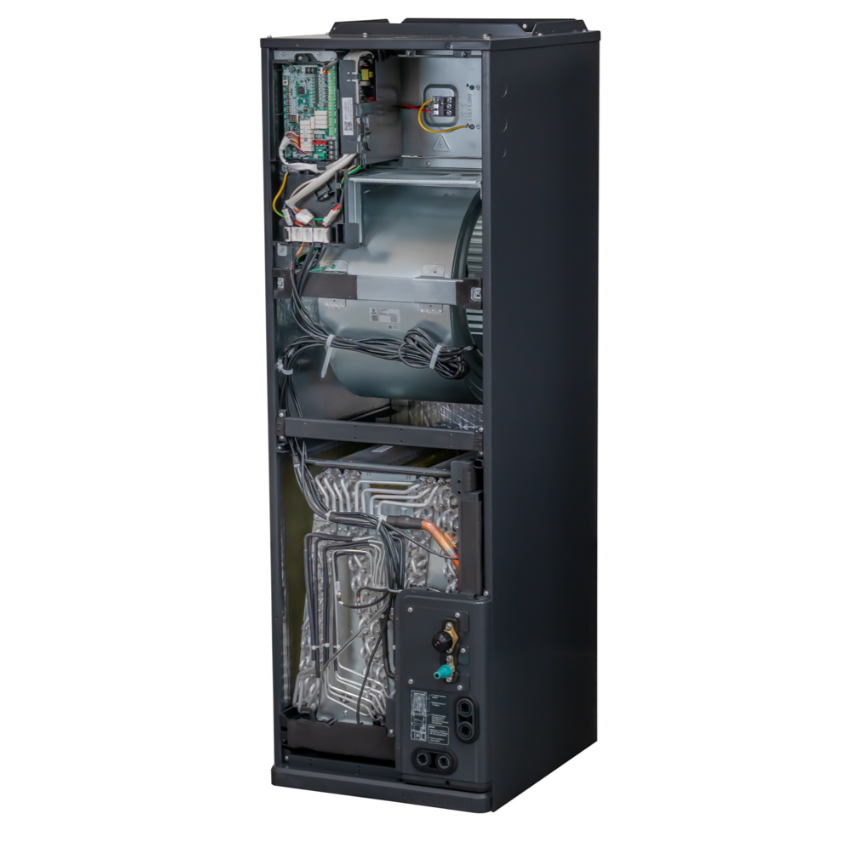

  Z-Series Air Handler Multi Position 2 Ton 115/208/230V 14.5" wide R454B RDS Included



  • Self-Identifying 115 or 230V Air Handler – Indoor unit automatically detects voltage and operates on either 115V or 230V upon installation.
  • Optional Communicating Touchscreen Thermostat (sold separately) – Z-Series communicating thermostat features a sleek, modern design and maintains variable speed and peak efficiency for optimal comfort and energy savings.
  • 10 Year Parts & Compressor Warranty, no registration required.
  • Z-Series Air Handler includes a 24V hard-wired thermostat and handheld remote. The wired thermostat functions as an IR Receiver for the handheld remote, if the remote is not used it must be retained with the indoor unit to adjust parameters, and for troubleshooting.
  • These air handlers are pre-charged with a low amount of nitrogen or helium to prevent dirt and moisture from entering the piping system.



    Brand Name	AC Pro
    MFG Name	AC Pro
    MFG Model ID	AIRH-Z-V024V08C
    MFG Product ID	AIRH-Z-V024V08C
    AC Pro Item ID	84227
    Color	Gray
    Width	14.49 Inches
    Depth	21.50 Inches
    Height	49.72 Inches
    Weight	123.02
    Warranty Details	10 Year Compressor~10 Year Parts
    Application	Residential
    CFM	824
    Liquid Line Size	3/8 Inches
    Manufacturer Group	Z-Series
    Max Amps	15
    Min Amps	3.5
    Phase	Single
    Refrigerant Type	R454B
    Region	California~Arizona~Nevada~Utah
    Speed	Variable
    Suction Line Size	3/4 Inches
    Tonnage	2
    Voltage	115 AC~230 AC
    Weight	123.02 Pounds
