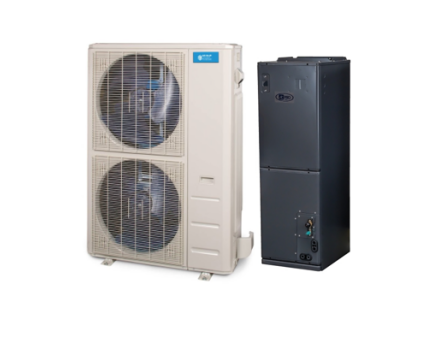

Z-Series Heat Pump System 5 Ton 17.5 SEER2 12 EER2 9.5 HSPF2 R454B

Z-Series Condenser Heat Pump 5 Ton 17.5 SEER2 12 EER2 9.5 HSPF2 R454B

• High-Efficiency Performance – Achieves 17.5–19 SEER2, meeting ENERGY STAR® certification and qualifying for tax credits and rebates.
• Match with the Z-Series self-Identifying 115/230V Air Handler – Indoor unit automatically detects voltage and operates on either 115V or 230V upon installation.
• 10 Year Parts & Compressor Warranty, no registration required.
• Optional Communicating Touchscreen Thermostat (sold separately)– Z-Series communicating thermostat features a sleek, modern design and maintains variable speed and peak efficiency for optimal comfort and energy savings.
• Simplified Retrofit Installation – A2L sensor control requires only two wires for indoor-to-outdoor connectivity, making installation easier for contractors. Also, the indoor unit measures as a standard 14.5, 17.5, 21.5 cabinet width.



  Brand Name	AC Pro
  MFG Name	AC Pro
  MFG Model ID	SPHP-Z-V060BB
  MFG Product ID	SPHP-Z-V060BB
  AC Pro Item ID	84235
  Width	37.5 Inches
  Depth	16.34 Inches
  Height	52.25 Inches
  Weight	242.95
  Warranty Details	10 Year Compressor~10 Year Parts
  dB Rating	65
  EER2	12.0
  HSPF2	9.5
  Liquid Line Size	3/8 Inches
  Manufacturer Group	Z-Series
  Max Amps	40
  Min Amps	40
  Phase	Single
  Refrigerant Type	R454B
  Region	California~Arizona~Nevada~Utah
  SEER2	17.5
  Stages	Variable
  Suction Line Size	3/4 Inches
  Tonnage	5
  Type	Heat Pump
  Voltage	230 AC
  Weight	242.95 Pounds

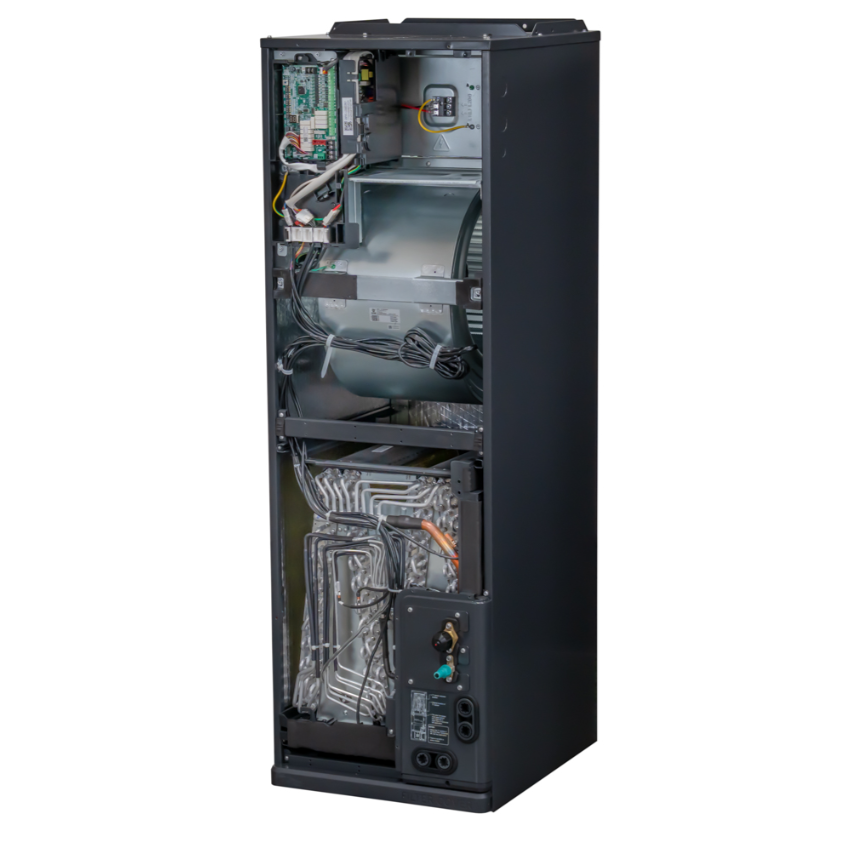

  Z-Series Air Handler Multi Position 5 Ton 115/208/230V 21.5" wide R454B RDS Included



  Brand Name	AC Pro
  MFG Name	AC Pro
  MFG Model ID	AIRH-Z-V060V18C
  MFG Product ID	AIRH-Z-V060V18C
  AC Pro Item ID	84230
  Color	Gray
  Width	21.50 Inches
  Depth	21.50 Inches
  Height	55.94 Inches
  Weight	188.05
  Warranty Details	10 Year Compressor~10 Year Parts
  Application	Residential
  CFM	1801
  Liquid Line Size	3/8 Inches
  Manufacturer Group	Z-Series
  Max Amps	15
  Min Amps	10
  Phase	Single
  Refrigerant Type	R454B
  Region	California~Arizona~Nevada~Utah
  Speed	Variable
  Suction Line Size	3/4 Inches
  Tonnage	5
  Voltage	115 AC~230 AC
  Weight	188.05 Pounds
